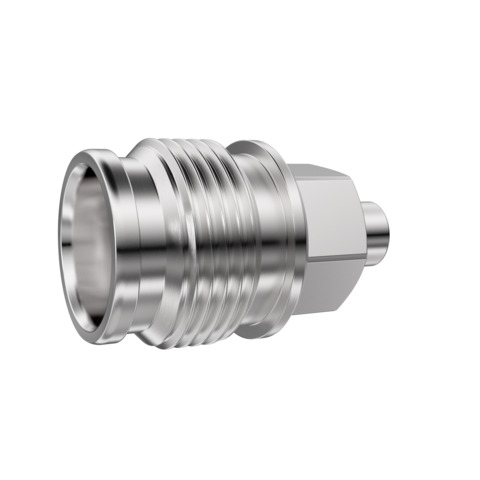

100025510 (J01461A0008)
Article number
5044164
Description
Telegaertner SAP nr.: 100025510
Manufacturer partnr.: J01461A0008
EAN.: 4018359538804
Performance Characteristics:
Space and weight savings due to compact design,
Optimized for 1/4”, 3/8”, 1/2“ corrugated cables,
Very low PIM values independent from torque and coupling mechanism,
Contact areas protected from damage even when not mated,
Screw, Handscrew and Push Pull options with same jack
Remarks: solder/solder, IP68
Assembly: A25
Euroclass: Not relevant
Flaming droplets: Not relevant
Smoke production: Not relevant
Acidity: Not relevant
Cable group; cable: G11 (UT-85)
G11: 1671A, EZ 86, Flexiform 405 NM, RG-405/U, SUCOFORM 86, UT-85
Manufacturer partnr.: J01461A0008
EAN.: 4018359538804
Performance Characteristics:
Space and weight savings due to compact design,
Optimized for 1/4”, 3/8”, 1/2“ corrugated cables,
Very low PIM values independent from torque and coupling mechanism,
Contact areas protected from damage even when not mated,
Screw, Handscrew and Push Pull options with same jack
Remarks: solder/solder, IP68
Assembly: A25
Euroclass: Not relevant
Flaming droplets: Not relevant
Smoke production: Not relevant
Acidity: Not relevant
Cable group; cable: G11 (UT-85)
G11: 1671A, EZ 86, Flexiform 405 NM, RG-405/U, SUCOFORM 86, UT-85
