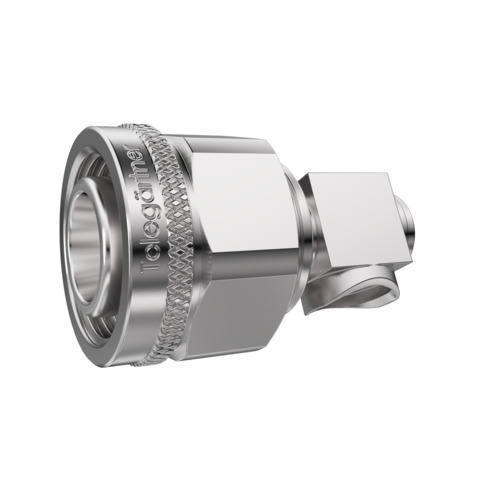

100025474 (J01460A2009)
Article number
5044148
Description
Telegaertner SAP nr.: 100025474
Manufacturer partnr.: J01460A2009
EAN.: 4018359542849
Performance Characteristics:
Space and weight savings due to compact design,
Optimized for 1/4”, 3/8”, 1/2“ corrugated cables,
Very low PIM values independent from torque and coupling mechanism,
Contact areas protected from damage even when not mated,
Screw, Handscrew and Push Pull options with same jack
Remarks: solder/solder IP68
Assembly: A29
Euroclass: Not relevant
Flaming droplets: Not relevant
Smoke production: Not relevant
Acidity: Not relevant
Cable group; cable: G9 (UT-250), G20 (1/4" Flex)
Type: Hand Screw Type
G9: EZ 250, Flexiform 401, RG-401/U, SUCOFORM 250, UT-250
G20: 5042 1/4"-Hiflex, FSJ1-50, RFF 1/4"-50, SCF 14-50 J RFS
Manufacturer partnr.: J01460A2009
EAN.: 4018359542849
Performance Characteristics:
Space and weight savings due to compact design,
Optimized for 1/4”, 3/8”, 1/2“ corrugated cables,
Very low PIM values independent from torque and coupling mechanism,
Contact areas protected from damage even when not mated,
Screw, Handscrew and Push Pull options with same jack
Remarks: solder/solder IP68
Assembly: A29
Euroclass: Not relevant
Flaming droplets: Not relevant
Smoke production: Not relevant
Acidity: Not relevant
Cable group; cable: G9 (UT-250), G20 (1/4" Flex)
Type: Hand Screw Type
G9: EZ 250, Flexiform 401, RG-401/U, SUCOFORM 250, UT-250
G20: 5042 1/4"-Hiflex, FSJ1-50, RFF 1/4"-50, SCF 14-50 J RFS
